ONYX II

$929.00 inc GST

  • Balanced
  • 5 LP Ports
  • 2 HP Ports
  • Lighter weight
  • Stylish black finish
  • Dry Environmental Seal with Hydro Transmitter
  • Downstream valve
  • Balanced Diaphragm
  • Dive/Pre Dive Venturi Control
  • Diver Adjustable Breathing Sensitivity
SKU: 350-03xx Category: Tags: ,

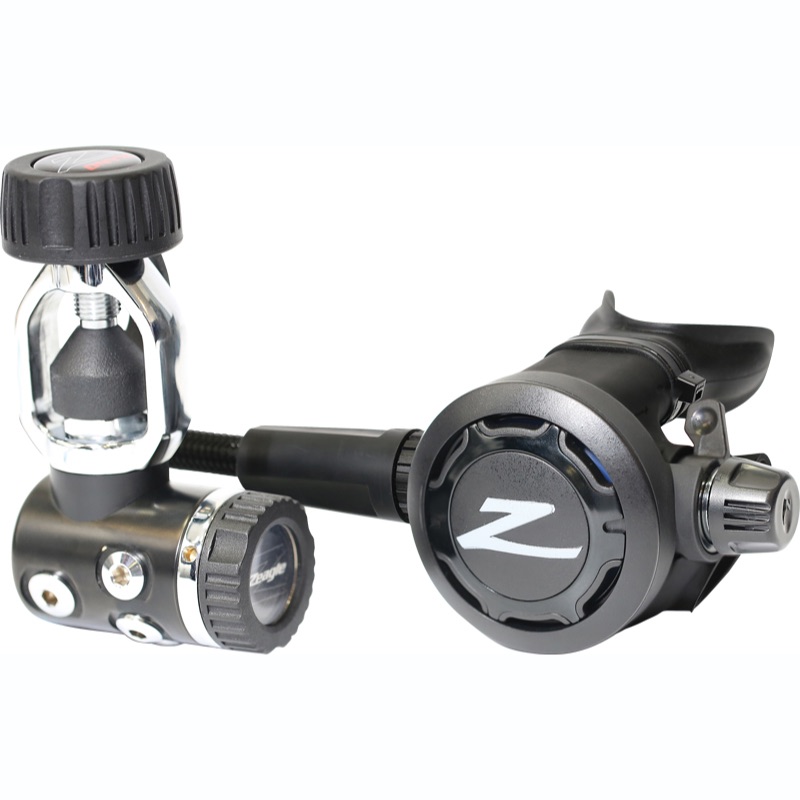

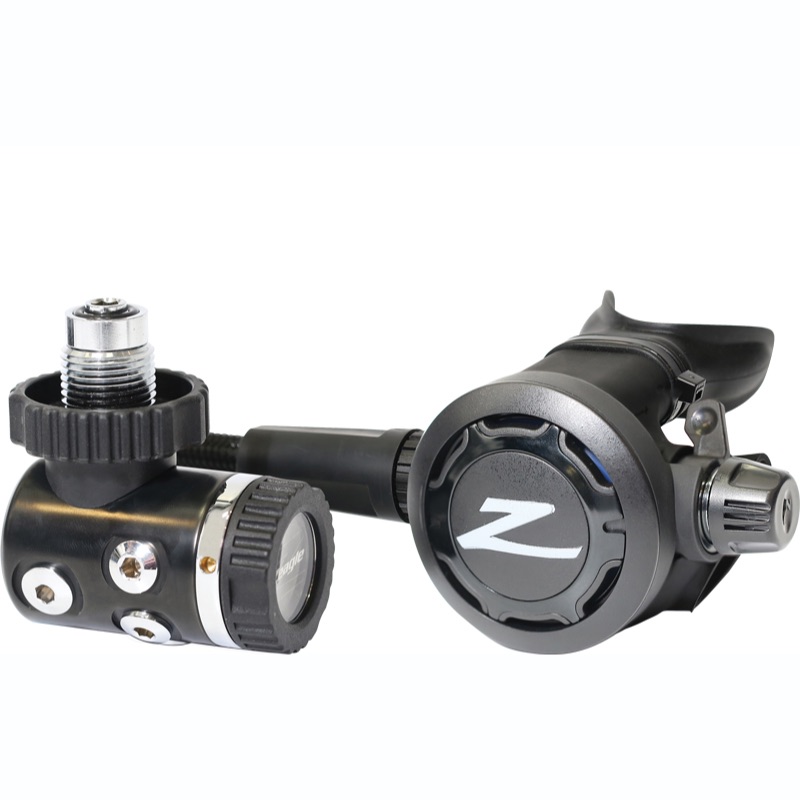

Easy breathing high performing cold water regulator

The Onyx II, is the sealed version of the 2011 Scubalab Testers Choice regulator, the Onyx. With the same attractive finish and outstanding performance as the Onyx regulator, the Onyx II fills the need for those that find themselves in cooler water.

BEAUTIFUL

The braided LP hose provides high flow and tremendous abrasion resistance while having great flexibility. The compact exhaust tee, advanced black satin chrome finish and light weight construction give the Onyx II a beautiful presence.

An anodised aluminium heat sink on the 2nd stage along with the external diaphragm on the 1st stage improves the cold water performance of the Onyx II regulator.

PERFORMANCE

The internal structure allows direct airflow through the 1st stage, providing lower turbulence for outstanding performance.

Our conical precision high-pressure valve provides much greater reliability and service life compared to conventional designs, while improving responsiveness and performance at all breathing rates.

Work of breathing at heavy* demand:

0.95 Joule/Liter

*198 (60M) depth, 750 psi inlet, 62.5 RMV (liters per minute respiratory volume)

Like all Zeagle regulators, The Onyx II comes factory ready for use with EAN/ NITROX to 40% O2.

SPECIFICATIONS

First Stage

Balanced

5 LP Ports

2 HP Ports

Lighter weight

Stylish black finish

Dry Environmental Seal with Hydro Transmitter

Second Stage

Downstream valve

Balanced Diaphragm

Dive/Pre Dive Venturi Control

Diver Adjustable Breathing Sensitivity

New Compact Profile

Anodised aluminium heat sink

Lightweight Braided Hose Length: 30 in. (.76 m)

First Stage Materials: Second Stage Materials:
Body: Brass Cover: Flexible Thermoplastic
O-rings: Buna-N Case: Thermoplastic
Seat: Advanced Polymer Poppet Seat: Elastomer
HP Valve: Stainless Steel O-rings: Buna-N
Diaphragm: Elastomeric Polymer
Exhaust Valve: Elastomer
Mouthpiece: Silicone
Weight N/A
