F8

$1,189.99 inc GST

Clear
SKU: 350-83xx Category: Tag:

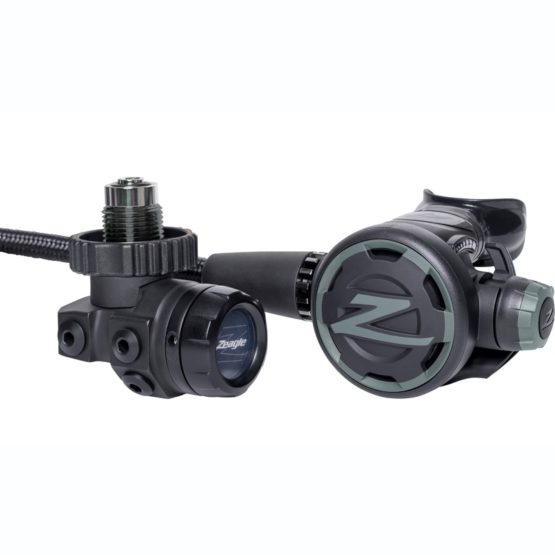

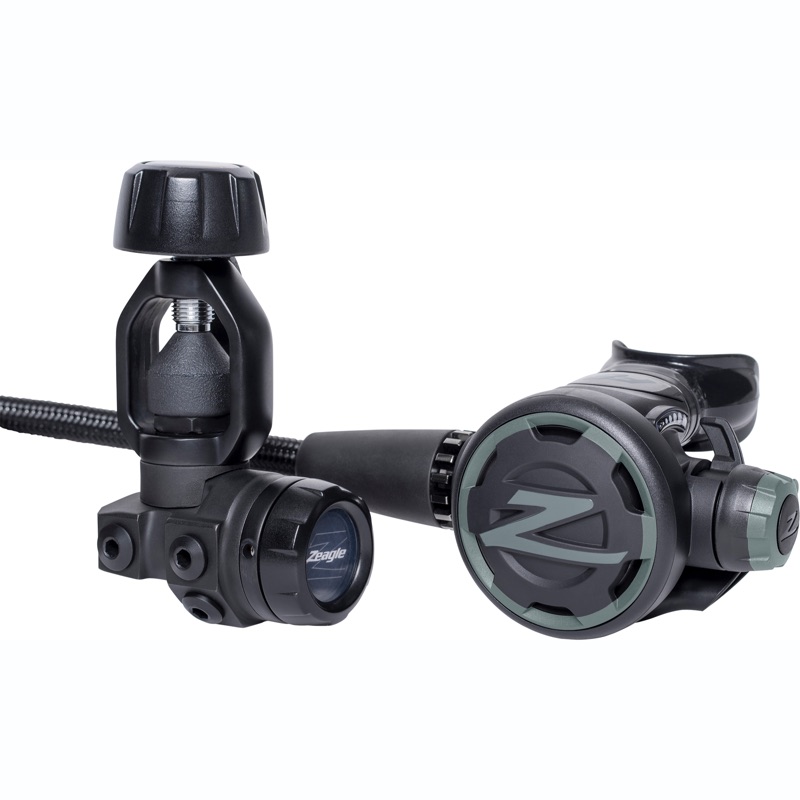

The legendary Zeagle first stage, complemented with a new high-performing flagship 2nd stage. The result, the best performing diaphragm regulator on the market today.

In partnership with Atomic Aquatics, we engineered over 20 different improvements on everything from inner mechanisms and materials to exterior controls and aesthetics. The F8 breathes better, works harder and lasts longer than any other regulator we’ve ever made.

New Neoflon Seat

Our conical precision high-pressure valve provides much greater reliability and service life compared to conventional designs, while improving responsiveness and performance at all breathing rates

Work of breathing at heavy* demand

0.72 Joule/Liter
*198 (60M) depth, 750 psi inlet, 62.5 RMV (liters per minute respiratory volume)
Like all Zeagle regulators, The Flathead-7 comes factory ready for use with EAN/ NITROX to 40% O2.

The F8 1st stage has a dry-sealed spring chamber (to stop freezing at water temperatures below 40 degrees F). All delicate parts of the 1st stage including the main spring are sealed behind the clear hydrostatic diaphragm away from the effects of salt or other contaminants in the water, making it environmentally sealed. It is very low in profile, barely extending above the tank valve, and places the low pressure hoses directly out to the sides, in a pattern preferred by many divers.

SPECIFICATIONS

Case design that is smaller, lighter and molded from high impact resistant materials

Personalise your F8 for colour style with a colour kit

Inhalation diaphragm with improved response and tear strength

Redesigned poppet with improved tolerances

First stage is coated with flat black chrome plating in order to protect the brass from corroding. A very durable black PVD is used to coat the high use port plugs, to protect from wear and tear and corrosion.

Dimensions (Front Profile) - 2.5 inch diameter (circular).

Smaller mouth piece with super soft silicone and colour accented tear resistant “Bite” lugs

Heat sink with improved materials and greater surface area to dissipate cold

Weight 1.565 kg
